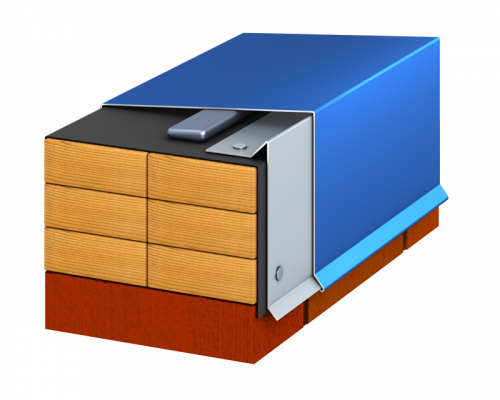

The Drexel Metals Econo Coping LT System is a two-part assembly that includes a continuous cleat and a decorative cover for single-ply commercial roof systems. Our Econo Coping LT is available in pre-painted Kynar 500® .040″ formed aluminum as 24 gauge Galvalume® steel. This product features two cleat options: 24 gauge pre-punched cleats with fasteners spaced at 12″ on center. All products come in standard 10′ standard cleat and coping cover lengths. Concealed splice plates and fasteners are included with the purchase of this product.
Material – 24 gauge, Face – up to 6″, Wall Width – <16″ max, Sustained Pressures – -180 psf(*) Material – 24 gauge, Face – up to 6″, Wall Width – 16″ to 24″ max, Sustained Pressures – -130 psf(*) Material – .040 AL, Face – up to 6″, Wall Width – <16″ max, Sustained Pressures – -240 psf(*) Material – .040 AL, Face – up to 6″, Wall Width – 16″ to 24″ max, Sustained Pressures – -110 psf(*) *Design Engineer must apply the Factor of Safety **ADDITIONAL GAUGES – .050 and .063 aluminum and 22 gauge Galvalume are available upon request

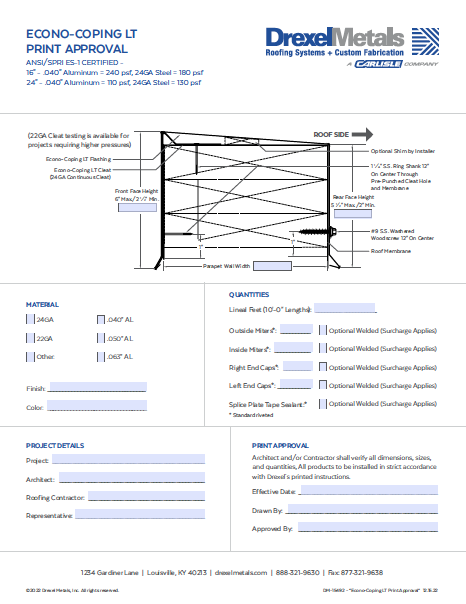

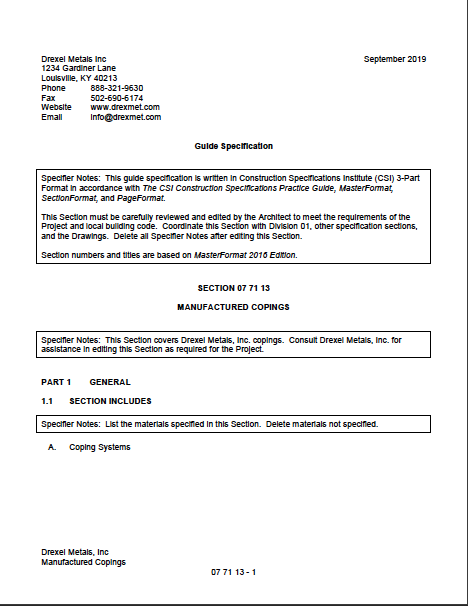

Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.
Drexel Metals Econo Coping LT system is tested per ANSI/SPRI Test Method RE-2 for fascia. The Econo Coping LT system shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This product meets International Building Code minimum requirement.

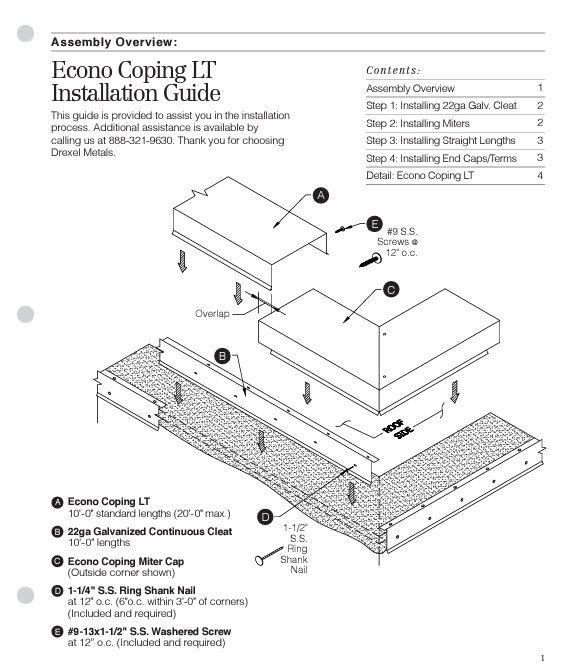

For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.
