Fascia LT

The Drexel Metals Fascia LT System is a two-part assembly that includes a continuous cleat and a decorative fascia cover for single-ply commercial roof systems. Our Fascia LT is available in pre-painted Kynar 500® .040″ formed aluminum as 24 gauge Galvalume® steel. This product features a 22 gauge pre punched cleats with fasteners spaced at 12″ on center. All products come in standard 10′ standard cleat and coping cover lengths. Concealed splice plates and fasteners are included with the purchase of this product.

Ideal Application
  • Flat Roof
  • Roof Edge
Product Data Sheet
east
Color Chart
east

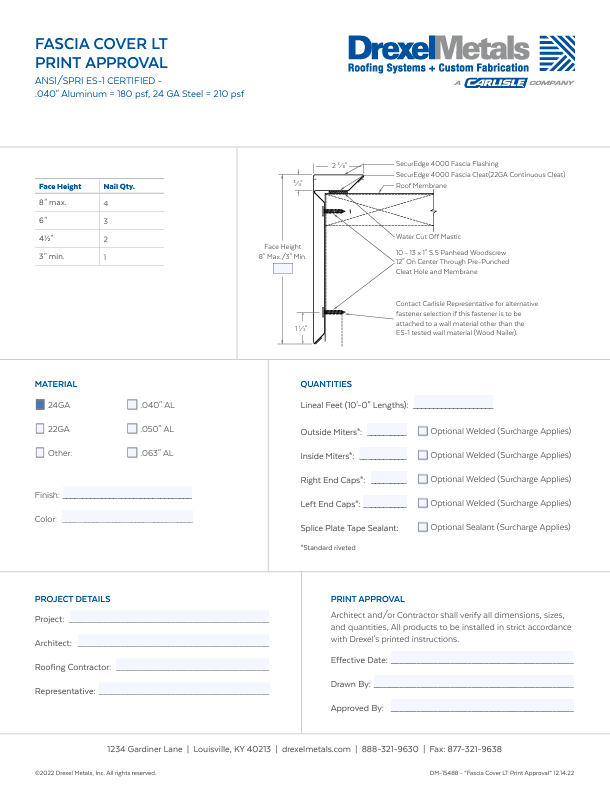

Product Specifications

Material – 24 gauge, Face – up to 8″, Sustained Pressures – -210 psf(*)
Material – .040 AL, Face – up to 6″, Sustained Pressures – -180 psf(*)

*Design Engineer must apply the Factor of Safety
**ADDITIONAL GAUGES – .050 and .063 aluminum and 22 gauge Galvalume are available upon request

Technical

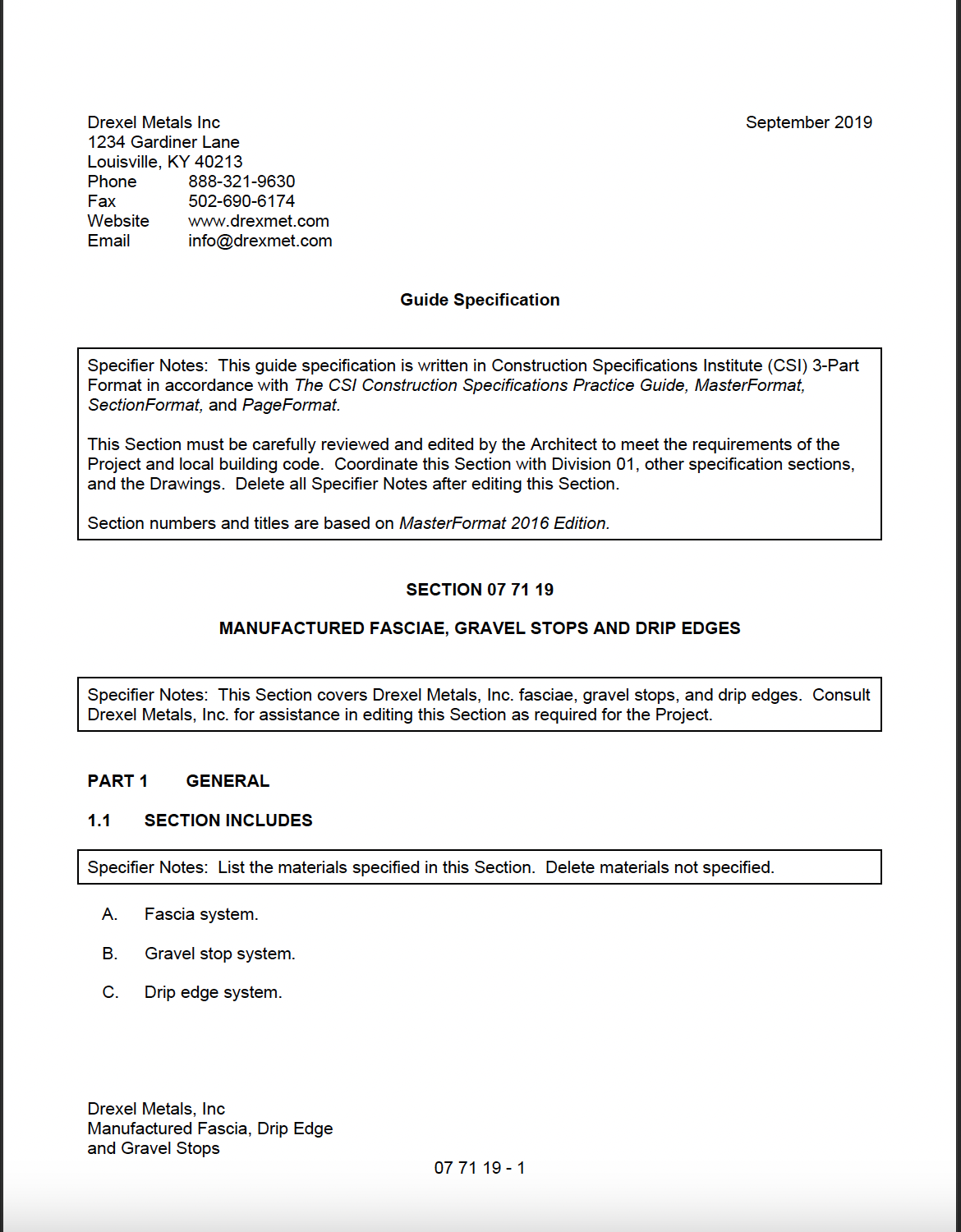

Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.

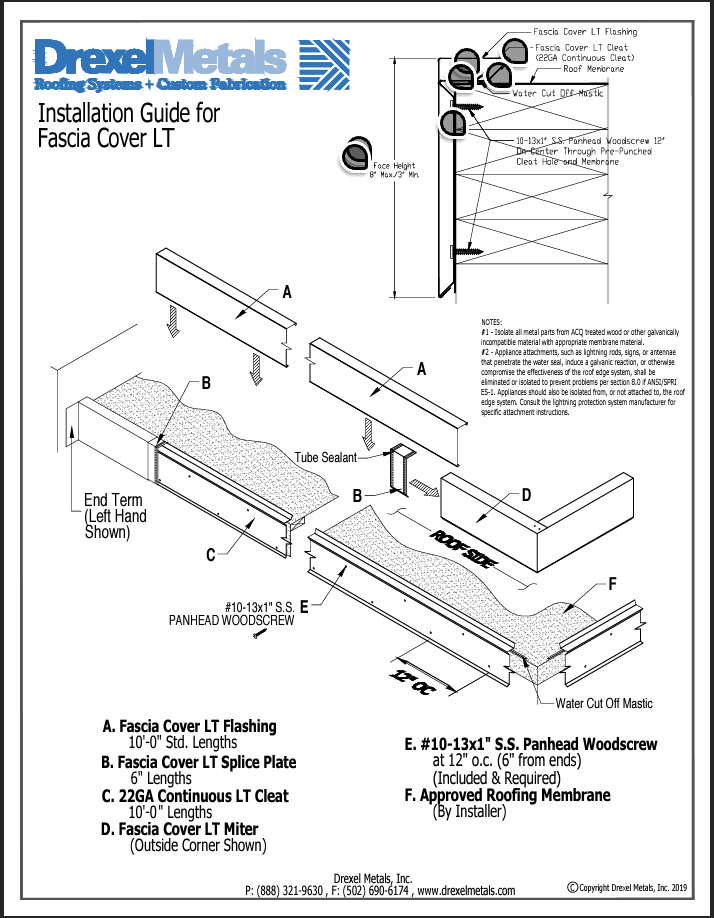

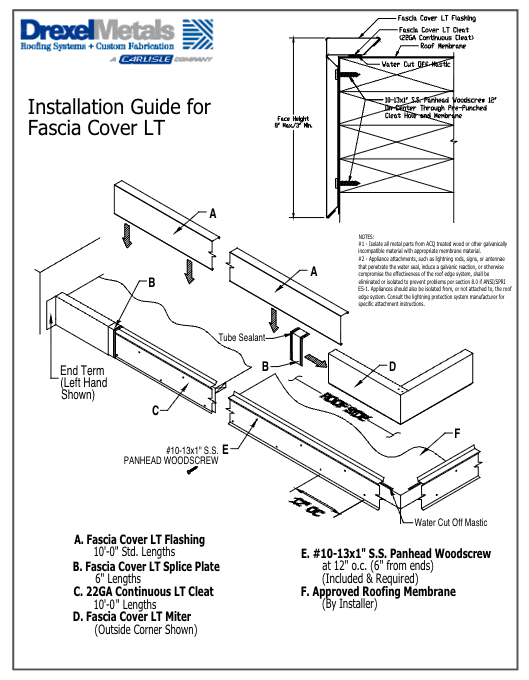

Installation

For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.

Testing

Drexel Metals Fascia LT system is tested per ANSI/SPRI Test Method RE-2 for fascia. The Fascia LT systems shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This products meets International Building Code minimum requirement.
