Gravel Stop

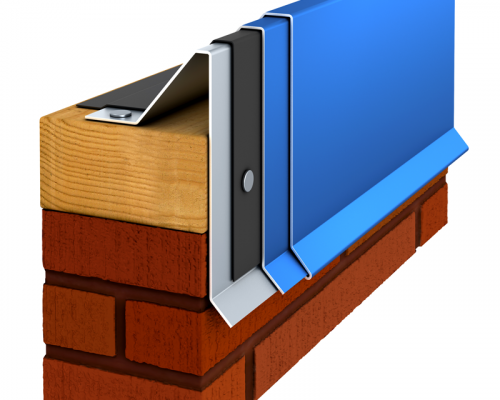

The Drexel Metals Gravel Stop two-part assembly includes a pre-punched continuous cleat and a decorative fascia cover, providing a seamless and professional finish to your building’s exterior. With its innovative design, our Gravel Stop System allows for the use of high-torque screws without penetrating the top surface of the membrane, ensuring maximum protection against leaks and damage. Plus, our continuous cleat is specially designed to securely fasten your roof membrane to the parapet wall, providing superior strength and durability.

Ideal Application
  • Flat Roof
  • Roof Edge
Product Data Sheet
east
Color Chart
east
Options

Material – 24 gauge, Face – up to 10″, Sustained Pressures – -180 psf (*)
Material -.040 AL, Face – up to 10″, Sustained Pressures – -170 psf (*)

*Design Engineer must apply the Factor of Safety
**ADDITIONAL GAUGES – .050 and .063 aluminum and 22 gauge Galvalume are available upon request

Testing

Drexel Metals Gravel Stop system is tested per ANSI/SPRI Test Method RE-2 for fascia. The Gravel Stop system shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This products meets International Building Code minimum requirement.

Installation

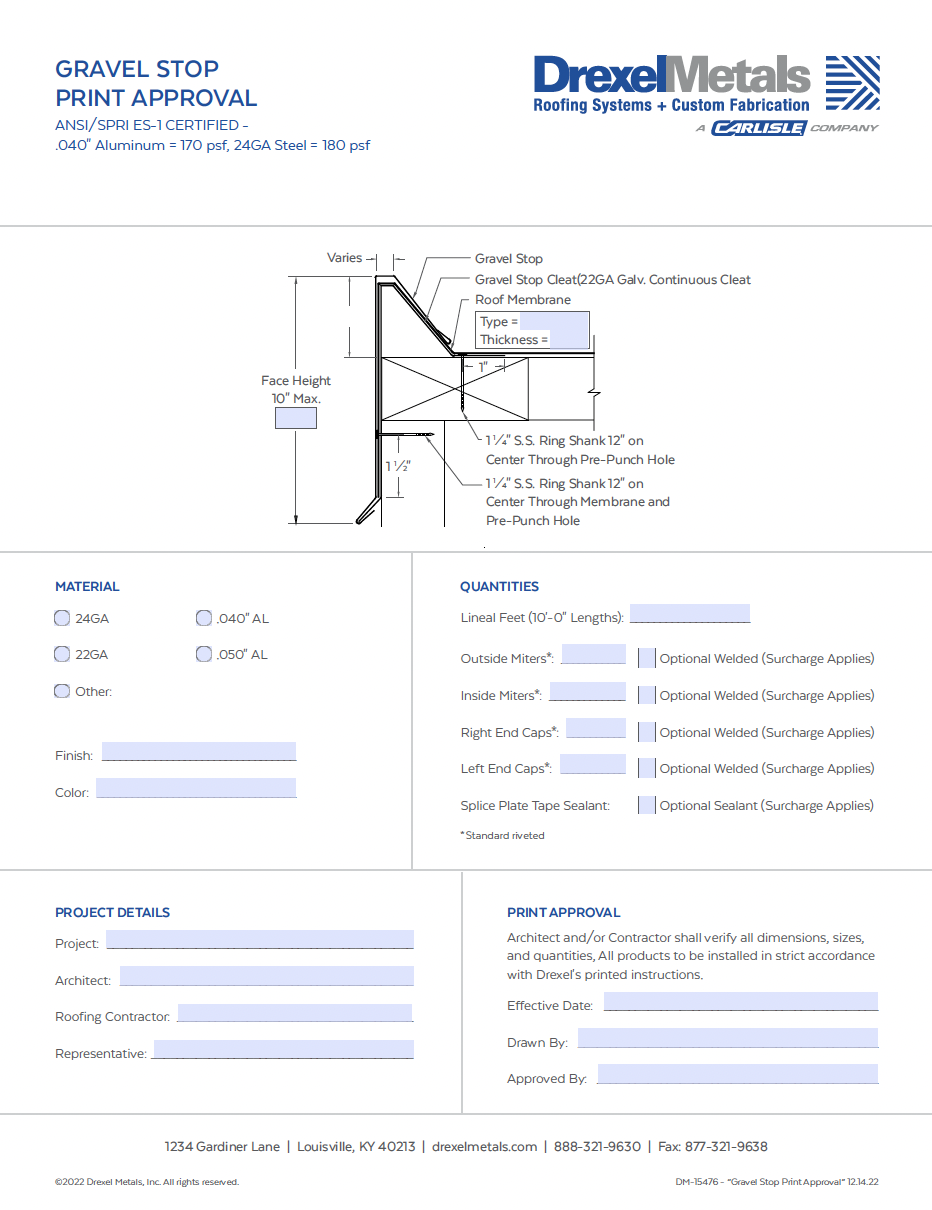

Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.

For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.
