Gutter HD

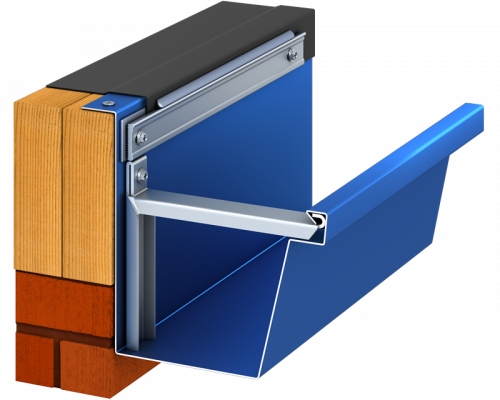

The Drexel Metals Gutter HD System is a heavy duty gutter used with single-ply commercial roof systems. Our 7″ Box Gutter is available in both pre-painted Kynar 500® .040 formed aluminum and 24 gauge Galvalume® steel. Available in standard lengths of 10′ and includes all gutter brackets (spaced 24″ on center) and fasteners.

Product Data Sheet
east
Color Chart
east
Product Specifications

Material – 24 gauge, Size – 7″, Sustained Pressures – -200/ -90- /290 psf(*)
Material – .040 AL, Size – 7″, Sustained Pressure – -210, -90- /-290 psf(*)

*Design Engineer must apply the Factor of Safety
**ADDITIONAL GAUGES – .050 and .063 aluminum and 22 gauge Galvalume available upon request

Technical

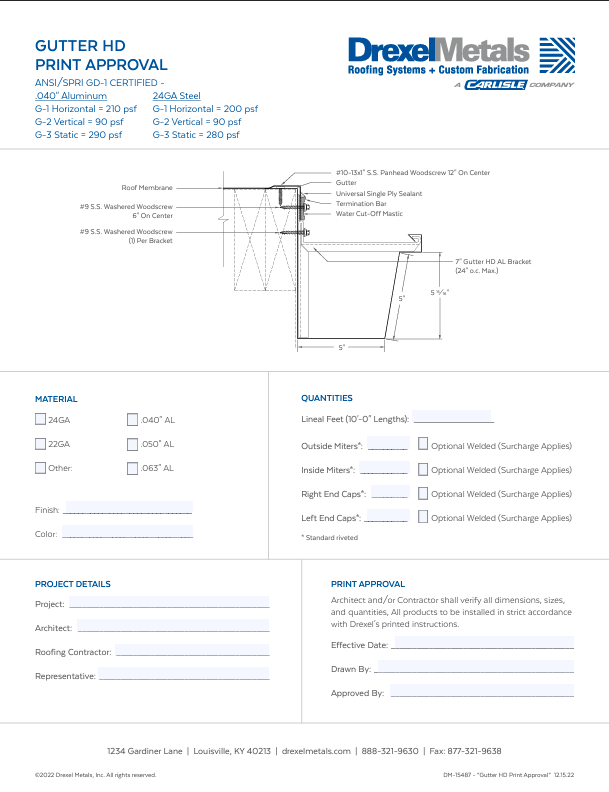

Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.

Testing

Drexel Metals Gutter HD system is tested per ANSI/SPRI Test Method GD-1 /GD-2 and GD-3 Structural Design Standard for Low Slope Roofs. The Gutter HD system shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This product meets International Building Code minimum requirement.

Installation

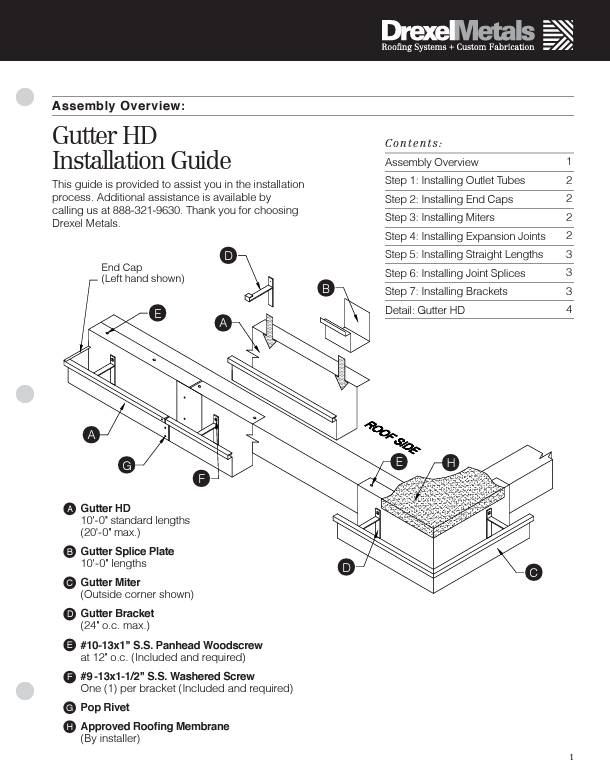

For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.
