Drexel Metals Snap Coping Max-C system is a two part assembly that includes a segmented cleat with spring clip and a decorative snap-on coping cover for single ply commercial roof systems. Our Snap Coping Max-C is available as pre-painted Kynar 500® in aluminum and Galvalume® steel. This product features our 16-gauge (G90) segmented pre-punched cleat spaced at 40″ on center, is available in 12″ standard cleat lengths and 10′ standard coping cover lengths. Concealed splices plates and fasteners are included with the purchase of this product.
Material – 24 gauge, Face – up to 12″, Wall Width – 32″ max, Sustained Pressures – -100 psf(*) Material – .040 AL, Face – up to 12″, Wall Width – 32″ max, Sustained Pressures – -100 psf(*) *Design Engineer must apply the Factor of Safety **ADDITIONAL GAUGES – .050 and .063 aluminum and 22 gauge Galvalume are available upon request
Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Drexel Metals. Product samples, detail sheets, color chips and color charts are also available for submittal packages. For personal assistance with questions or for full submittals, contact Drexel Metals or your local independent sales representative.

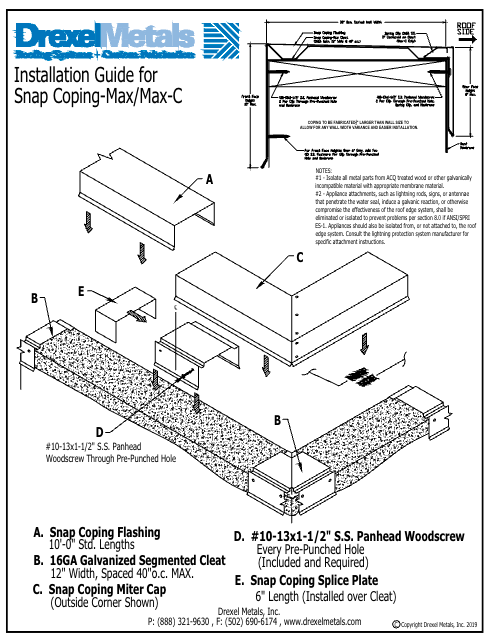

For complete installation instructions, please refer to Drexel Metals Architectural specifications and details.
Drexel Metals Snap Coping Max-C system is tested per ANSI/ SPRI Test Method RE-3 bidirectional test for wind requirements for Coping and Wall Caps. The Snap Coping Max C shall be certified by Drexel Metals to design pressures as indicated in current edition of SPRI’s Wind Resistance Standard for Edge Systems used with Low Slope Roofing System. This product meets International Building Code minimum requirements.
