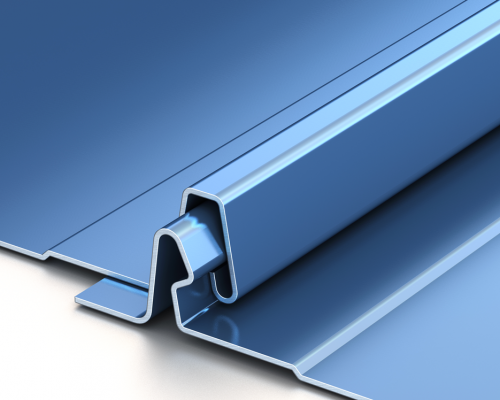

Our DMC 100NS profile offers unlimited design potential with its sleek, crisp appearance and attractive shadow lines. Eliminating the need for metal roof clips, the concealed 1″ self-locking Snap Lock system creates a powerfully protective seal. Versatile and refined, this easy-to-install metal roof delivers superior beauty, durability and strength while showcasing architectural details.
Painted Galvalume® –24ga Drexlume™– 24ga Aluminum – .032″
Factory made or field rolled to exact lengths. Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

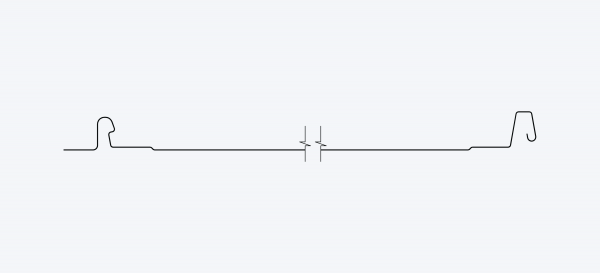

12”, 16”, and 20″ Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Minimum slope 3:12
3:12 – low roof pitch
UL 580 Wind Uplift (Class 90) UL 2218 Class 4 Hail Impact UL 263 Fire Certification UL 790 Class A Fire Rating UL Environmental – SRI Third Party Verified Florida Building Code Approved Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.

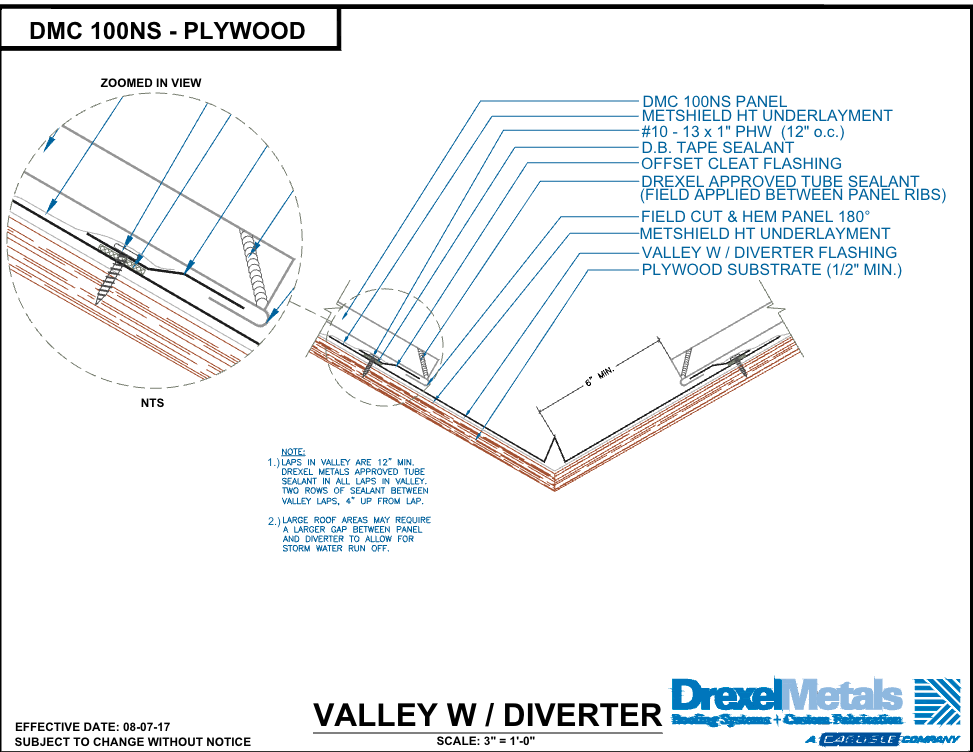

Can be installed over plywood decking and Drexel Metals MetShield® underlayment.
35 year non-pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume® with a two-sided, clear acrylic finish.
