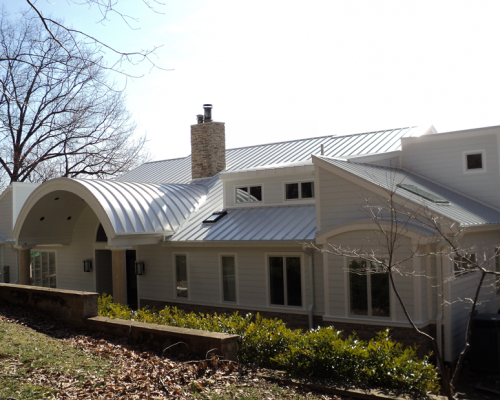

Our DMC 150SS roof system will lend striking dimension to any architectural design. This versatile 1-1/2″ mechanically seamed panel can be curved to a wide range of radiuses and applications – from barrel roofs to conical shapes and more. Concealed fasteners and a floating clip system reduce the effect of thermal stresses on the panels, helping to maintain a beautifully smooth, uniform appearance.

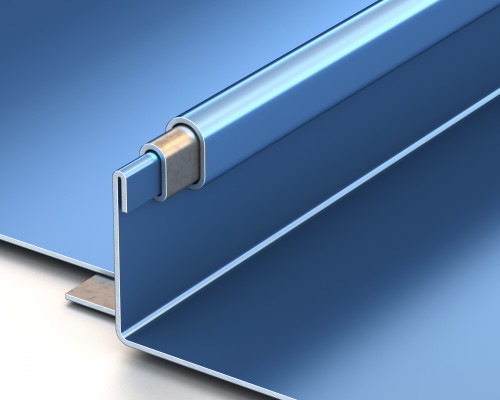

Single Lock (90 Degrees) Double Lock (180 Degrees)
Painted Galvalume® – 22ga, 24ga and 26ga Drexlume™ – 22ga, 24ga and 26ga Aluminum – .032″ and .040″ Copper and Zinc
Factory made or field rolled to exact lengths. Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.
12” – 20”*
12”, 16” and 20” *Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Minimum slope 2:12
Can be installed over steel decking with Polyiso, or over plywood decking and Drexel Metals MetShield® underlayment.
• UL 580 Wind Uplift (Class 90) • TAS 125 Wind Uplift • ASTM E1592 Wind Uplift • UL 1897 Extended Phase Wind Uplift • UL 2218 Class 4 Hail Impact • UL 790 Class A Fire Rating • UL Environmental – SRI Third Party Verified • ASTM E1646 Water Infiltration • TAS 100 Wind Driven Rain • ASTM E1680 Air Infiltration • ASTM E1886 Missile Impact • ASTM 2140 Static Pressure Water Head • Miami-Dade County Approved • Florida Building Code Approved • Texas Department of Insurance Approval
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available. Contact the Drexel Metals Technical Department for single and double lock specific testing information.
35 year non pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume® with a two-sided, clear acrylic finish.
Find a Drexel Metals Representative near you!
