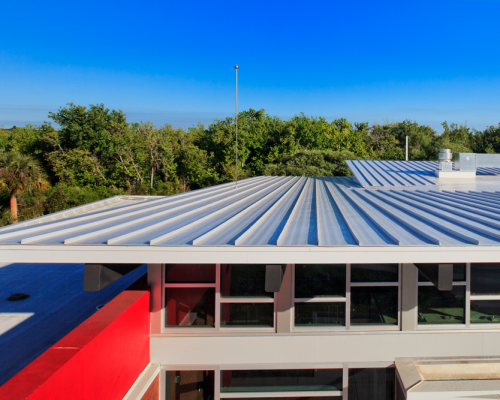

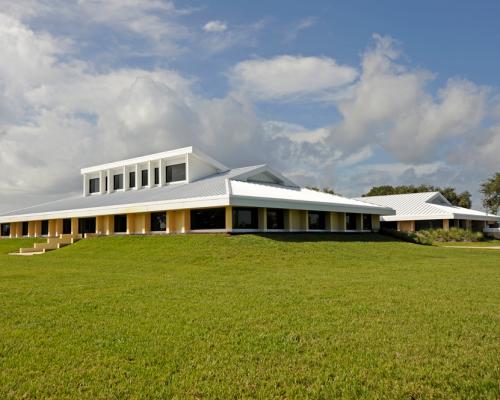

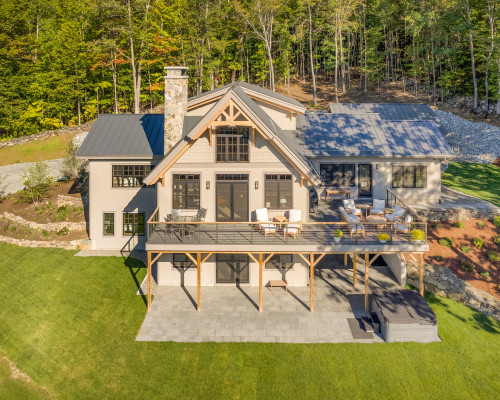

The versatility of the DMC 200S roof system makes it an ideal choice for low to steep slope applications. Performance-engineered to handle heavy-duty commercial and industrial projects, this 2″ mechanically seamed structural metal roof system will meet or exceed most wind load and government requirements from coast to coast. Concealed fasteners and floating clip systems reduce panel stress from changes in temperature and help maintain a smooth, uniform appearance. This product can also be curved for large barrel roofs or small canopies.

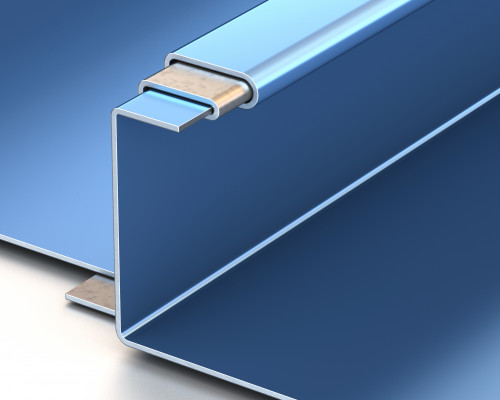

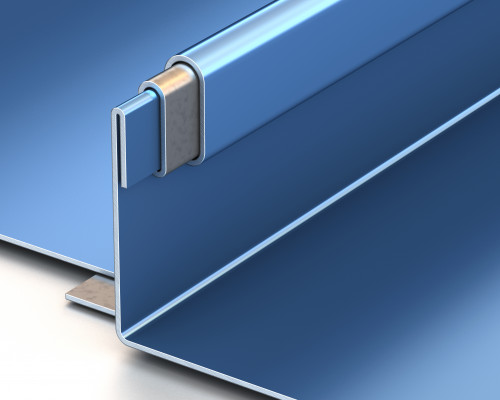

Single Lock (90 Degrees) Double Lock (180 Degrees)
Painted Galvalume® – 22ga, 24ga and 26ga Drexlume™ – 22ga, 24ga and 26ga Aluminum – .032″ and .040″ Copper and Zinc

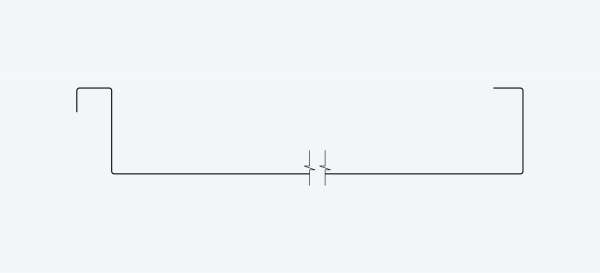

12″- 20″*
14″, 18″ *Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Minimum slope 1/2:12

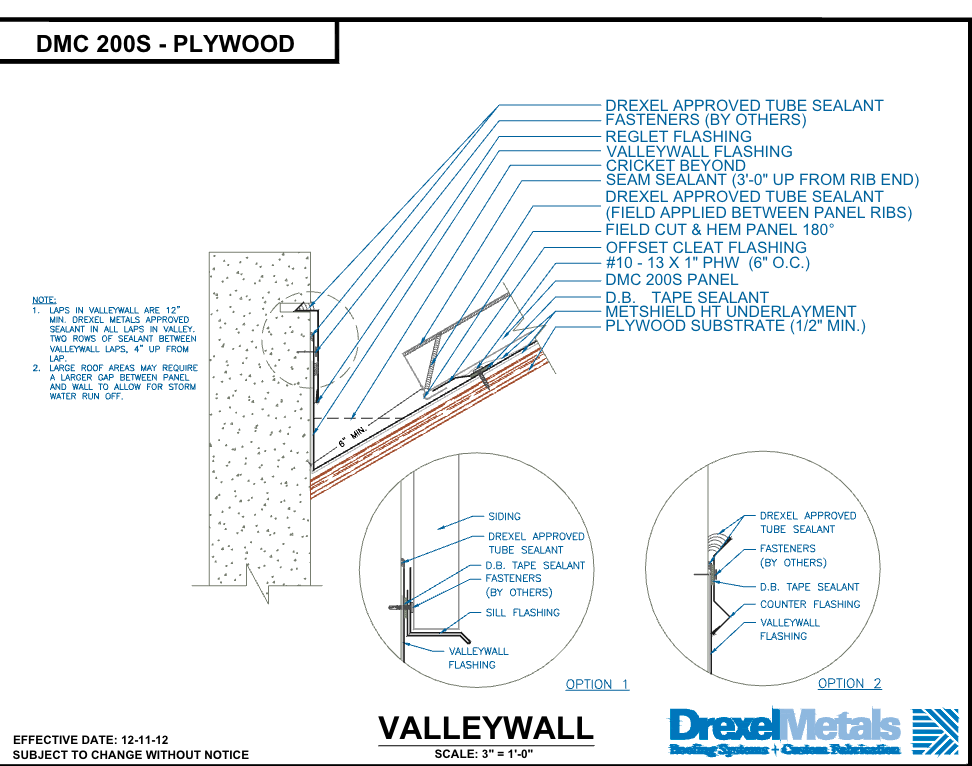

Can be installed over plywood decking or insulated metal decking with approved underlayments. Please see Drexel Metals installation details for complete information.
UL 580 Wind Uplift (Class 90) TAS 125 Wind Uplift UL 1897 Extended Phase Wind Uplift UL 2218 Class 4 Hail Impact UL 790 class A Fire Rating UL Environmental – SRI Third Party Verified ASTM E1592 Uniform Static Air Pressure Uplift ASTM E1646 Water Infiltration TAS 100 Wind Driven Rain ASTM E1680 Air Infiltration ASTM E1886 Missile Impact ASTM 2140 Static Pressure Water Head Miami-Dade County Approved Florida Building Code Approved Texas Department of Insurance Approval
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available. Contact the Drexel Metals Technical Department for single and double lock specific testing information.
