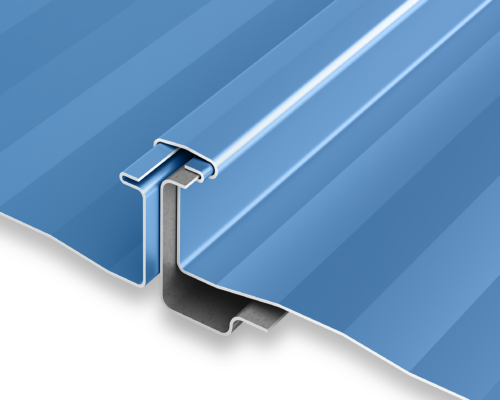

Engineered for performance and aesthetics, the DMC 250T delivers a sleek 2″ panel profile that rises 2.625″ above the deck when paired with its clip and cap system. Designed for low-slope applications down to ½:12, this premium panel offers unmatched versatility with factory or field-formed lengths and a bi-directional installation method that speeds up projects. Featuring a concealed-fastener clip system for thermal movement and factory-applied seam sealant for superior weathertight integrity, the DMC 250T ensures long-term durability. Available in multiple steel and aluminum substrates with a wide range of finishes, it combines structural strength, efficiency and style.
Painted Galvalume® – 22ga, 24ga Drexlume™ – 22ga, 24ga Aluminum – .032″, .040″
Factory made or field rolled to exact lengths. Options: flat panel, striations, pencil Rib.
16”, 18” Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
½:12 – low roof pitch
Can be installed over plywood, steel decking and Polyiso with approved underlayment or open framing. Please see Drexel Metals installation details for complete information.
• UL 580 Wind Uplift (Class 90) • UL 1897 Extended Phase Wind Lift • ASTM 283 • ASTM 331 • ASTM 1680 • ASTM 1646 • ASTM E1592 • ASTM E2140
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.
35 year non Pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume with a two-sided, clear acrylic finish
