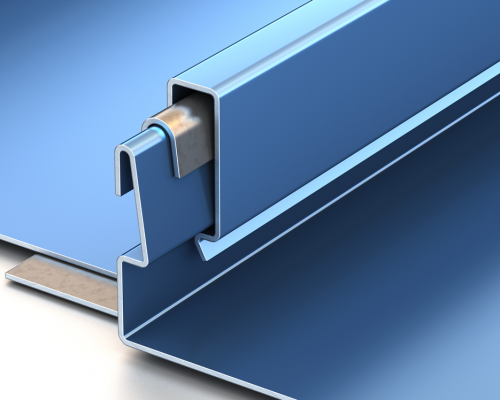

A superior integral seam design and quick installation – that’s the hallmark of the DMC 550S panel. This expertly crafted interlocking roof system provides a powerfully protective weathertight seam. The finished results deliver a substantial measure of quality and style that’s certain to stand the test of time.
Painted Galvalume® – 22ga, 24ga and 26ga Drexlume™ – 22ga, 24ga and 26ga Aluminum – .032″ and .040″
Factory made or field rolled to exact lengths. Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

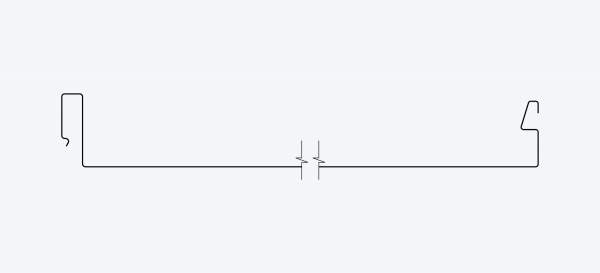

12” – 19”*
15”, 19” *Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Minimum slope 3:12
3:12 – low roof pitch
• UL 580 Wind Uplift (Class 90) • UL 2218 Class 4 Hail Impact • UL 263 Fire Certification • UL 790 Class A Fire Rating • UL Environmental – SRI Third-Party Verified
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.
Can be installed over open frame steel purlins, or over plywood decking and Drexel Metals MetShield® underlayment.
35 year non pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume® with a two-sided, clear acrylic finish.
