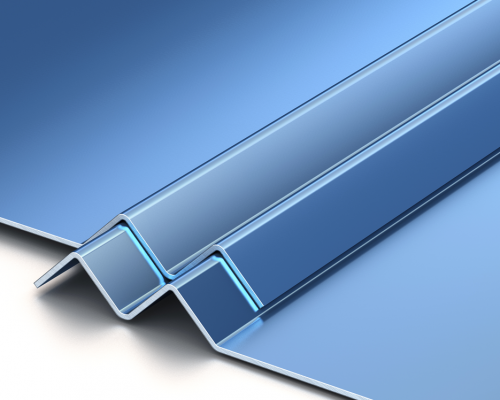

Featuring an authentic “Key West” aesthetic, this traditional roof system is a long-time favorite for its functionality and style. The generous 24″ panel span, 3/8″ rib height and exposed fastener design together achieve an attractive finish that will stand up strong to harsh weather year after year.
Painted Galvalume® – 22ga, 24ga Drexlume™ – 22ga, 24ga Painted Aluminum – .032″, .040″

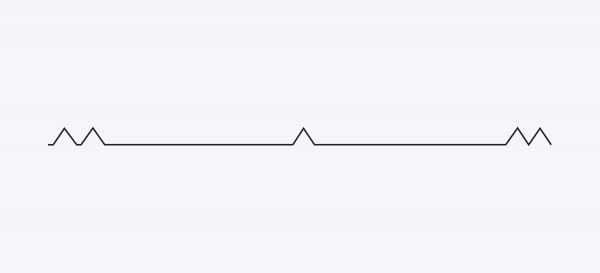

20.5”, 24” Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Minimum slope 2:12
2:12 – low roof pitch
TAS 100 UL 580 Wind Uplift (Class 90) TAS 125 Wind Uplift UL 1897 Extended Phase Wind Uplift Florida Building Code Approved Miami-Dade County Approved
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.

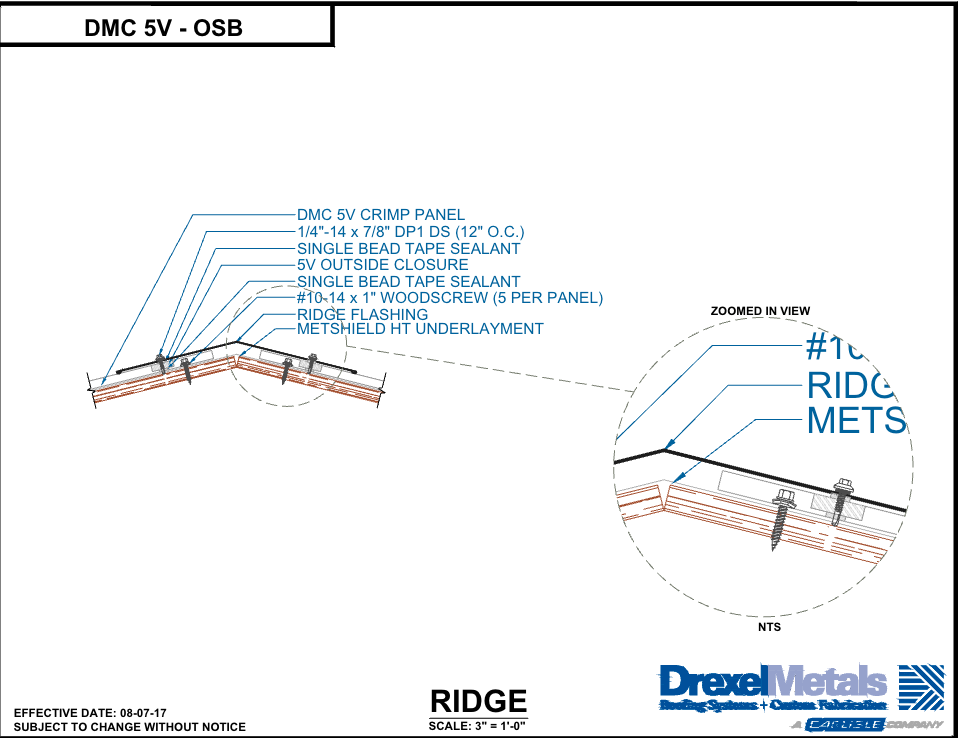

Can be installed over plywood decking with approved underlayments. Please see Drexel Metals installation details for complete information.
35 year non Pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume® with a two-sided, clear acrylic finish.
