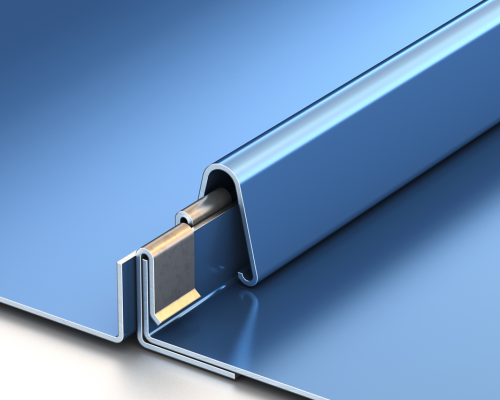

Classic yet versatile, our Cap Seam roof is ideal for a variety of projects, especially those including curved applications. The low profile 1″ cap with the flat pan effortlessly accommodates detailing at hips and valleys and can be curved as tight as a 3′ radius. A quick and easy installation is inherent in this premium quality roof system.
Painted Galvalume® – 22ga, 24ga and 26ga Drexlume™ – 22ga, 24ga and 26ga Aluminum – .032″ and .040″ Copper
Factory made or field rolled to exact lengths. Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.
12” – 18”*
16” *Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Can be installed over plywood decking and Drexel Metals MetShield® underlayment.
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths.
35 year non pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume® with a two-sided, clear acrylic finish.
