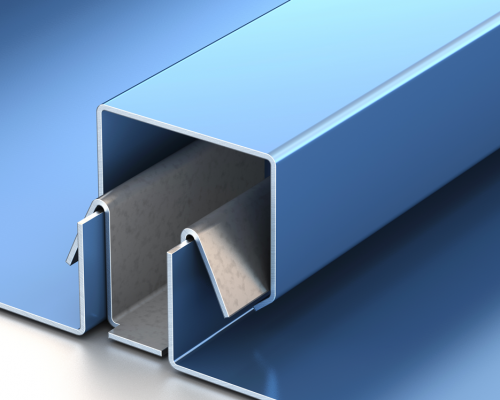

Distinctive in its powerful profile design, the DMC Snap-On Batten roof system beautifully accentuates the architectural appeal of mansards, fascias and other solid substrate with a slope that exceeds 3:12. The ample 1-1/2″ batten provides added dimension with bold shadow lines, while the heavy-duty construction delivers outstanding performance and protection. Quick snap-on battens ensure ease of installation.
Painted Galvalume® – 22ga, 24ga and 26ga Drexlume™ – 22ga, 24ga and 26ga Aluminum – .032″ and .040″
Factory made or field rolled to exact lengths. Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.
12” – 18”*
16” *Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Can be installed over plywood decking and Drexel Metals MetShield® underlayment.
Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths.
35 year non pro-rated PVDF Paint Warranty High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
Mill finished Galvalume® with a two-sided, clear acrylic finish.
