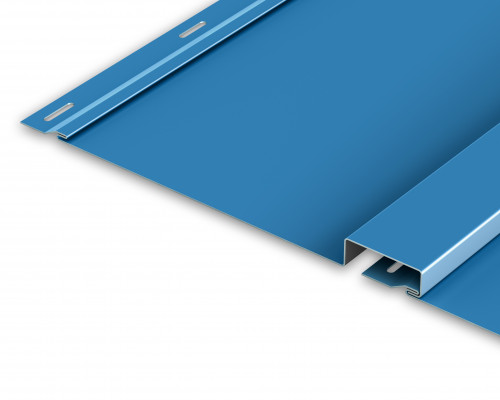

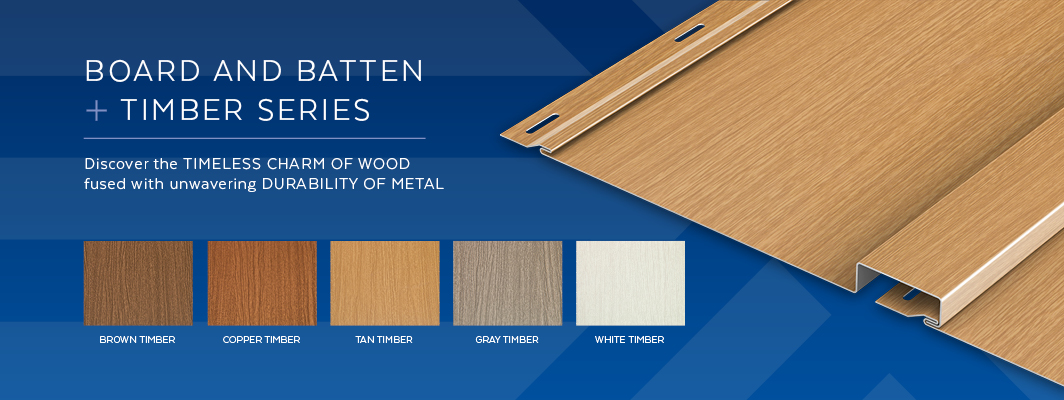

Board and Batten panels provide a timeless design aesthetic for residential and commercial projects. This profile generates clean lines and patterns and features alternating wide vertical boards and narrower 2” elevated battens. The ¾” panel depth creates dimensional interest while keeping trim offsets to a minimum. This profile is mechanically fastened through pre- punched holes. To achieve the clean look Board and Batten is known for, fasteners are concealed under the subsequent panel’s batten. Board and Batten panels have the unique ability to seamlessly blend into various architectural settings. Whether seeking a cozy and inviting facade or a bold and striking statement, Board and Batten exterior walls remain a versatile canvas for architectural creativity.
24 Gauge Steel .032 Aluminum
12”, 16” Nominal *Batten is 2″ wide and 3/4″ deep on all panel widths. Material usage when forming is 3 5/8″
To help limit the visual appearance of oil canning, Drexel Metals recommends maximum panel lengths for Board and Batten panels: • Maximum Recommended Panel Length: 8′-0″ nominal for 24 gauge steel and .032″ aluminum Maximum Panel Length: 30′ for steel and 22′ for aluminum Notice: Oil canning is a natural characteristic of metal panels and is not considered a defect or cause for rejection. An oil canning acknowledgment form is required when Board and Batten panels are ordered beyond the recommended lengths.

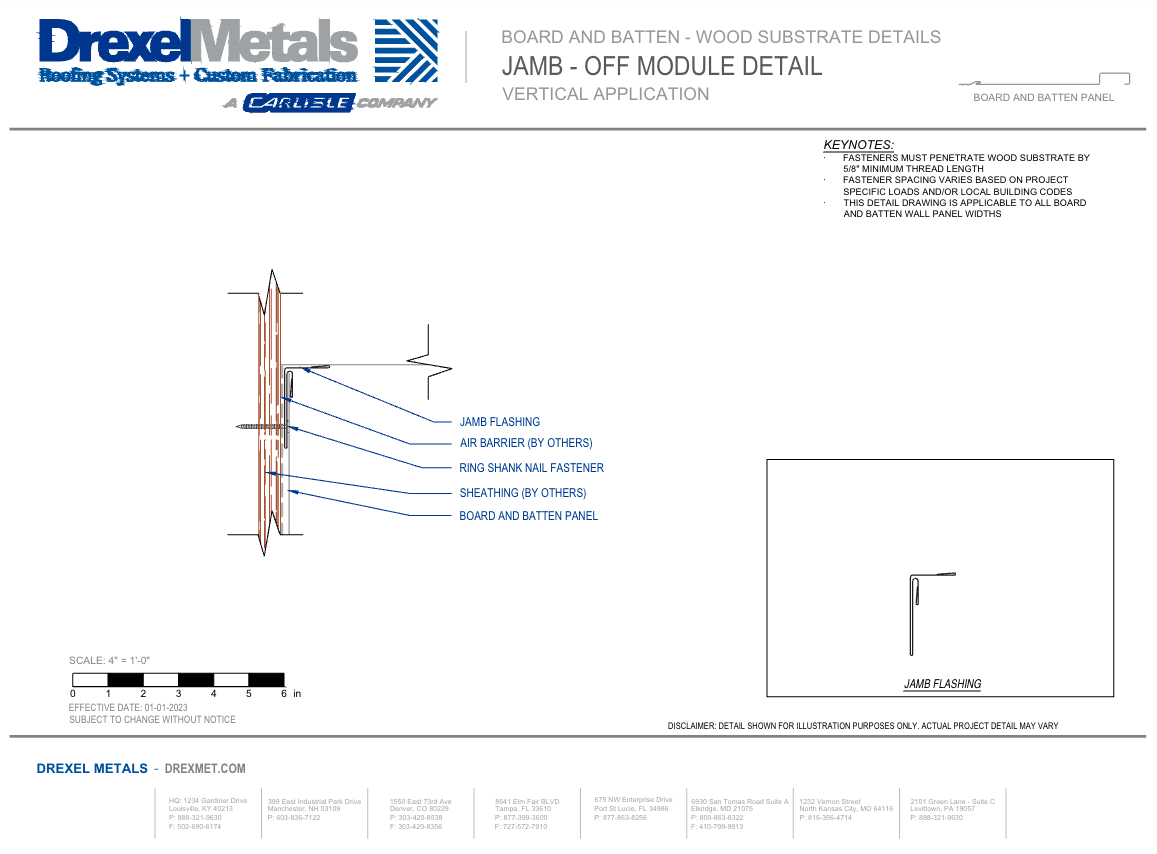

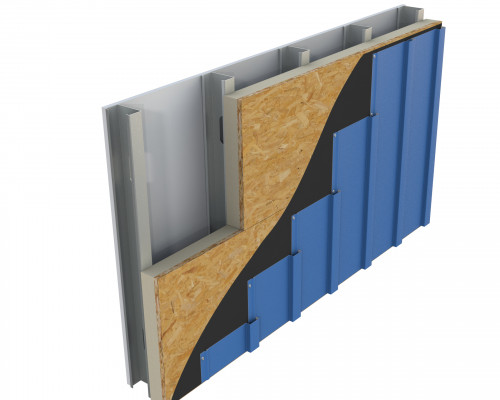

Board and Batten is mechanically fastened through pre-punched holes and fasteners are concealed under the subsequent panel’s batten. When installing in a wall application, the panels must be installed vertically, limiting panel lengths to 30’ for steel and 22’ for aluminum.
