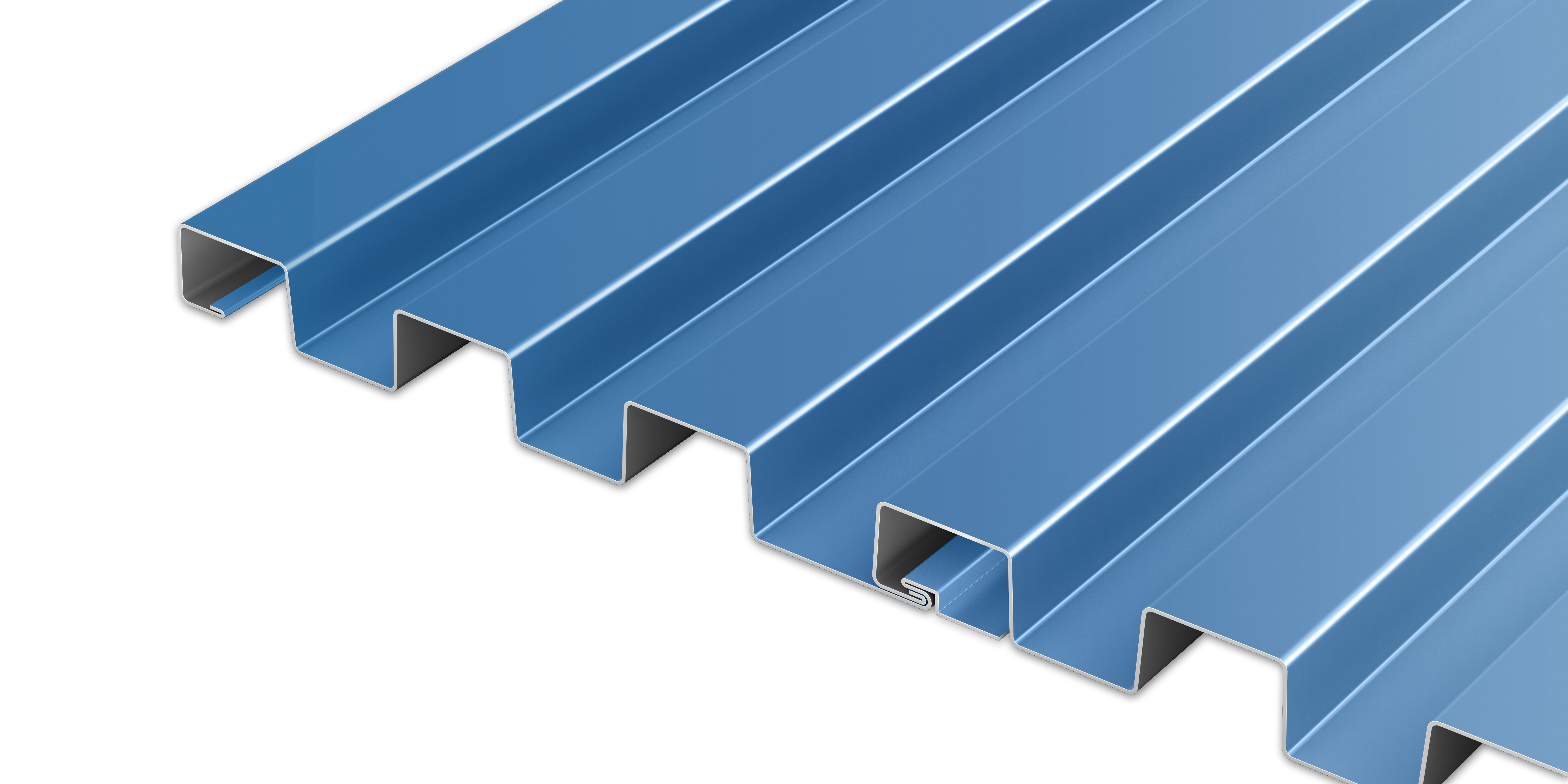

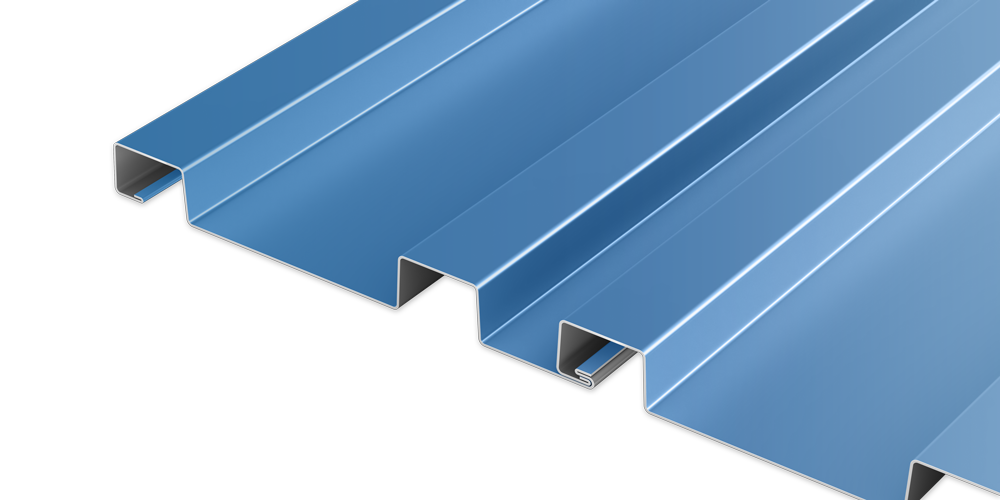

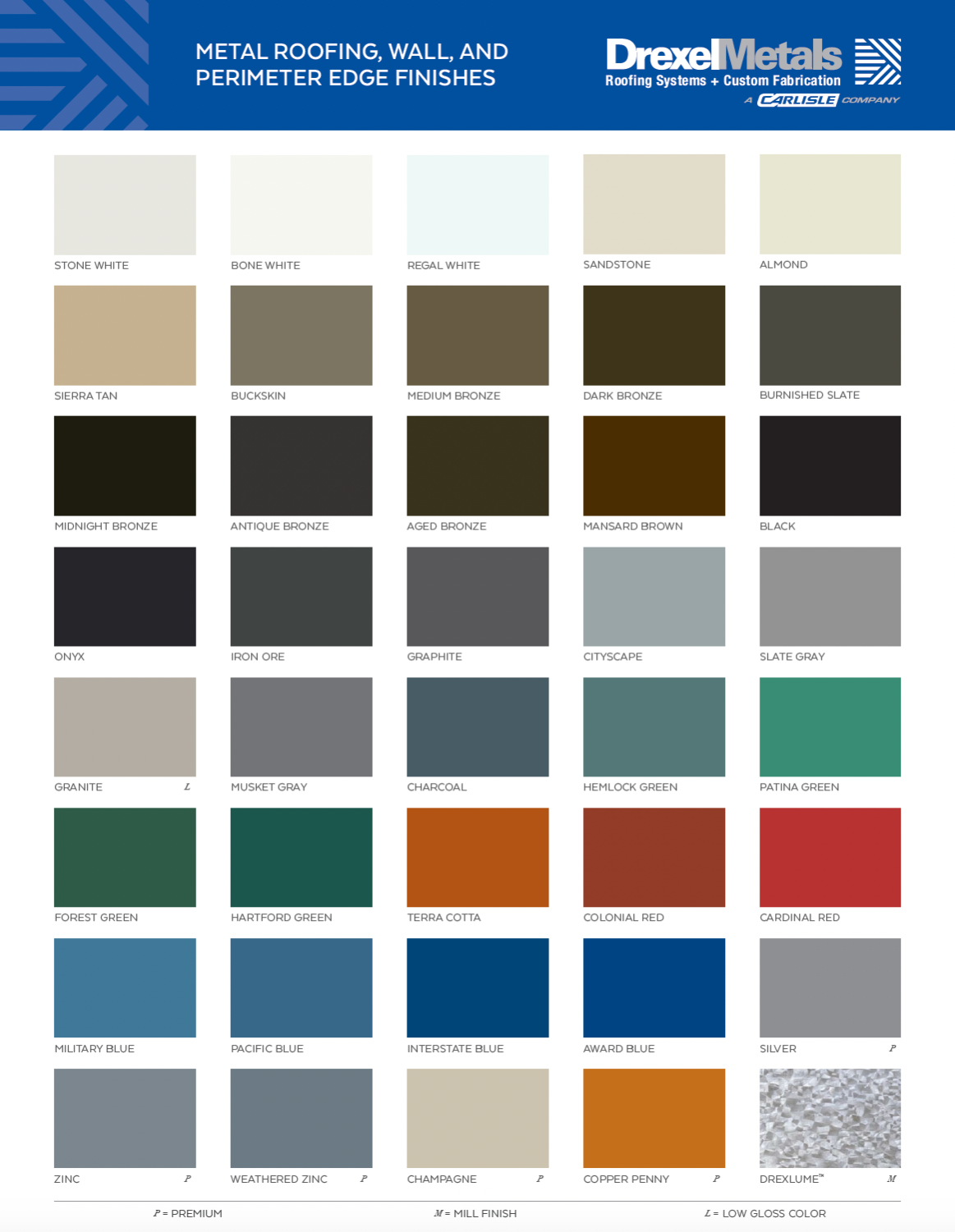

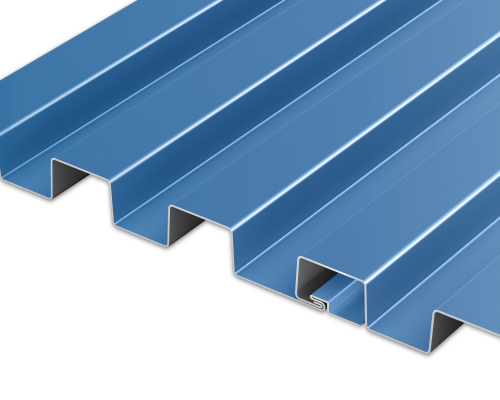

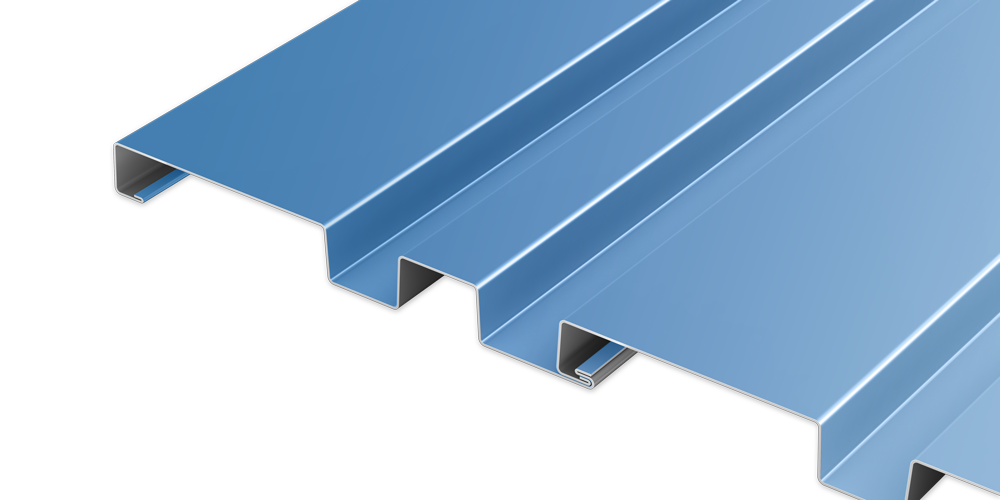

The Facade BR series boasts a sleek and modern design that will elevate the aesthetic of any building. These panels are offered in a depth of 1 3⁄8″, with a 12″ nominal width. They feature 87-degree rib angles, as well as a variety of rib spacing patterns. Our Facade BR wall panels are available in a vast range of colors and finishes, allowing you to perfectly complement the appearance of your building.
Cost-effective installation with horizontal and vertical options and a panel depth of 1 3/8".
.032 aluminum .040 aluminum .050 aluminum 24 gauge steel 22 gauge steel
ASTM E 283 ASTM E 331 ASTM E 330 ASTM E 1592 Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.
Panels shall be installed over a solid substrate with appropriate barriers or in limited application over framing sections. When used in a windscreen application, panels must be fastened through side joints. Consult a local architect/engineer for requirements of local codes and conditions. Please see the Drexel Metals warranty page for complete warranty information.
