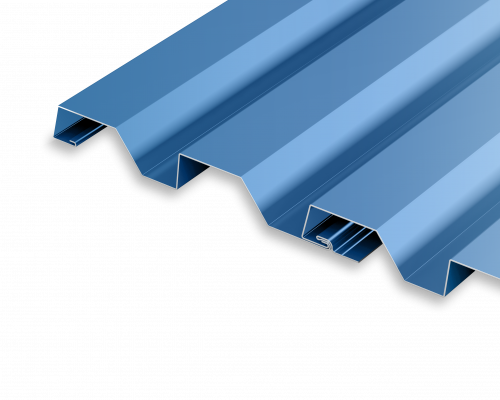

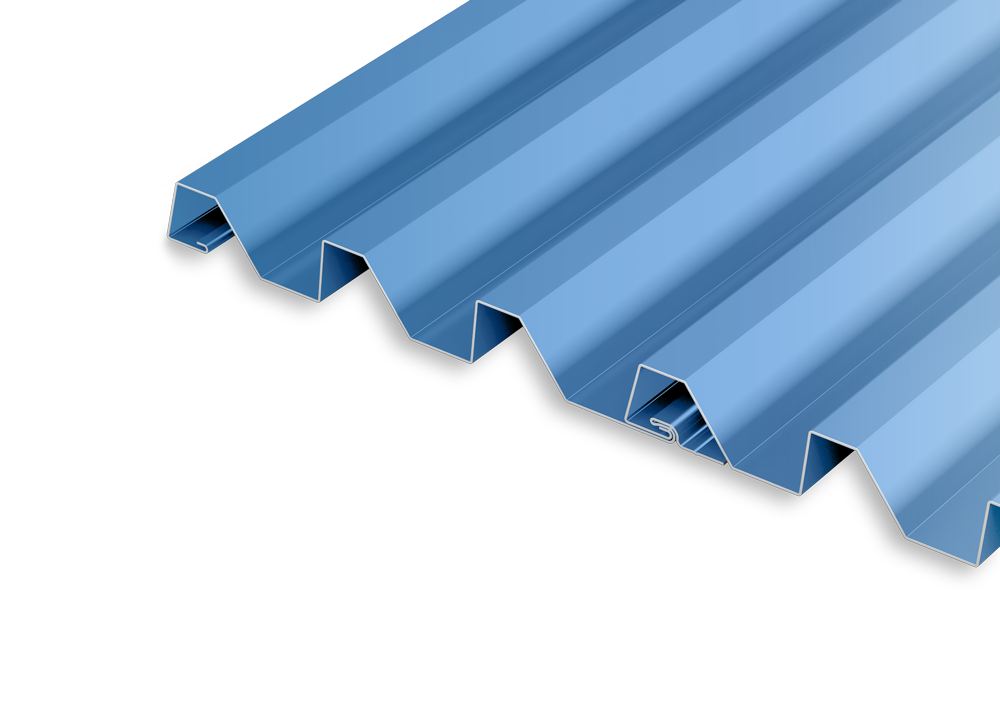

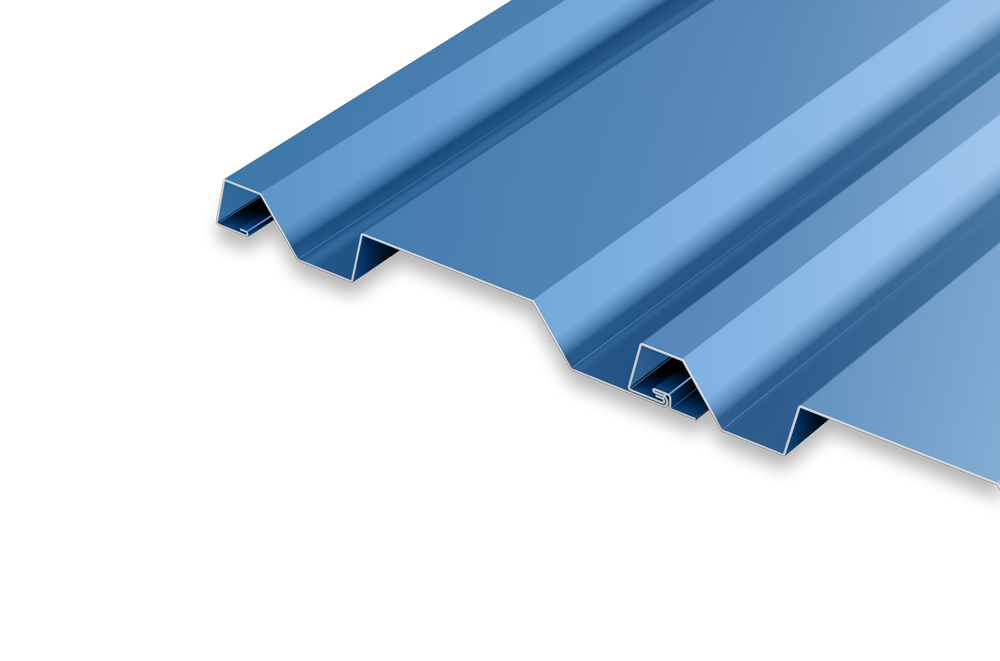

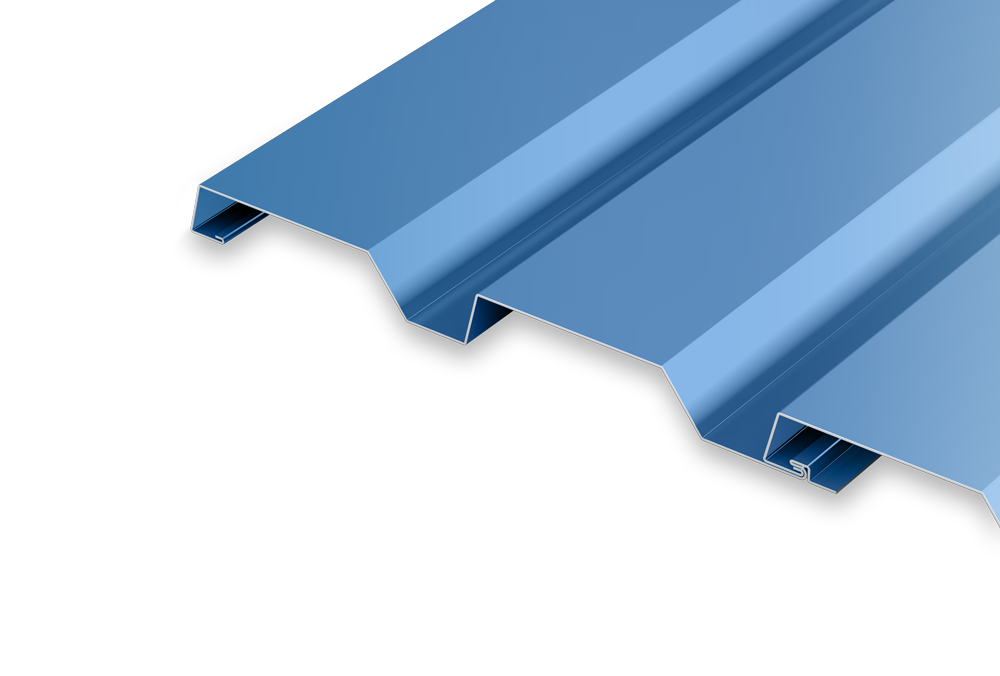

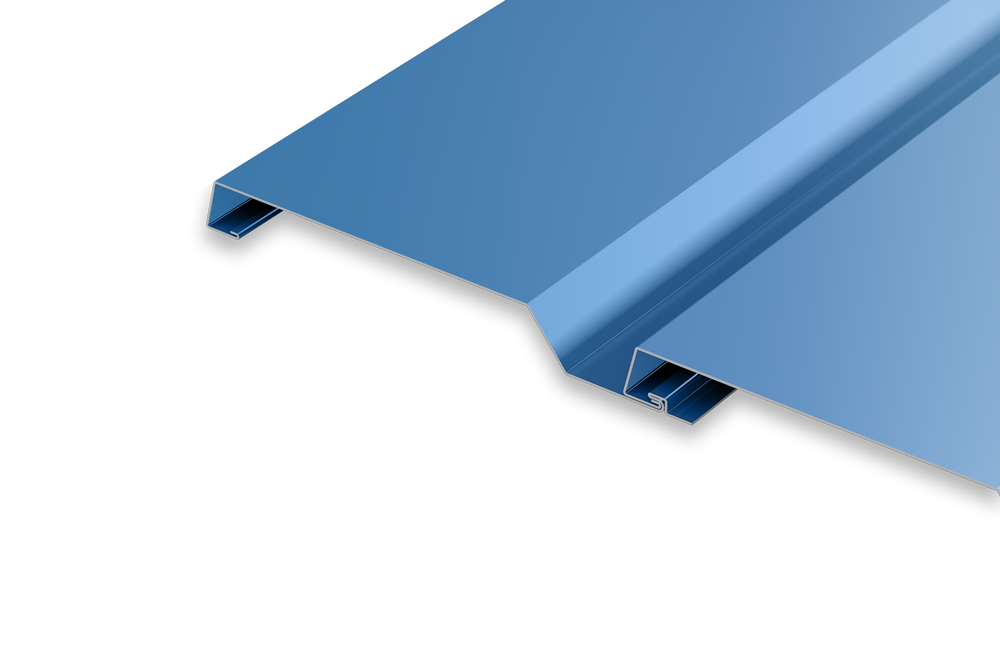

The Facade HL series boasts seven unique profiles in a depth of 1 3⁄8”. This versatile collection allows for limitless customization options and exceptional visual impact on any building’s exterior. These panels come in both 12″ and 16″ nominal widths, offering even more flexibility for your project needs. With its contemporary and sophisticated design, the Facade HL wall panels elevate the aesthetic of any building. The panels are available in a vast range of colors and finishes, making it easy to find the perfect match for your property’s style and character.
Cost-effective installation with horizontal and vertical options and a panel depth of 1 3/8".
.032 aluminum .040 aluminum .050 aluminum 24 gauge steel 22 gauge steel Varies – please refer to individual data sheets.
ASTM E 283 ASTM E 331 ASTM E 330 ASTM E 1592 Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.
Panels shall be installed over a solid substrate with appropriate barriers or in limited application over framing sections. When used in a windscreen application, panels must be fastened through side joints. Consult a local architect/engineer for requirements of local codes and conditions. Please see the Drexel Metals warranty page for complete warranty information.
