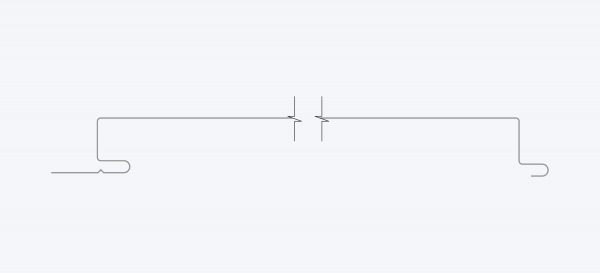

FWQ100 Profile

From subtle elegance to modern sophistication, the smooth, uniform appearance of the DMC FWQ panel is certain to please. This expertly crafted panel is ideally suited for a wide range of applications, including fascias, walls, equipment screens, and soffits. Panels are available in oncenter dimensions designed to complement Drexel’s roofing panel product line. Panels are available in Flush and Reveal joint configurations in a depth of 1″.

Ideal Application
  • Architectural
  • Commercial
  • Residential
  • Soffits
  • Walls
Product Data Sheet
east
Color Chart
east
Seam

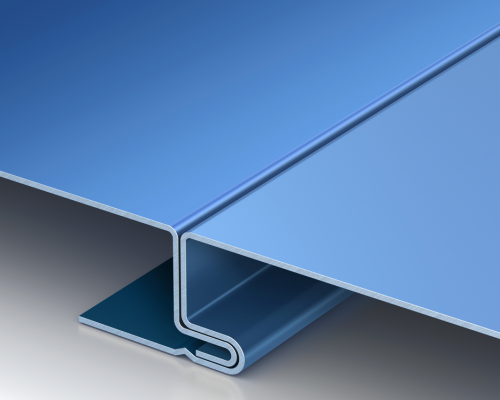

Flush Panel

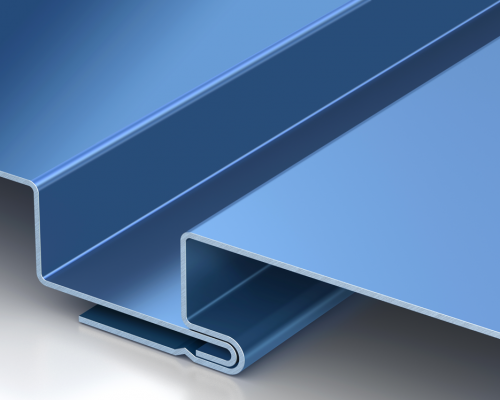

Reveal Panel – Up to 3” reveal in ½” increments

Substrate

Painted Galvalume® – 22ga, 24ga and 26ga
Drexlume™ – 22ga, 24ga and 26g
Aluminum – .032″ and .040″

Panel Rib

Factory made or field rolled to exact lengths.
Options: flat panel, striations, bead, small and large V, small and large pencil, 1 or 2 row vented.

Available Widths

12” – 16”*

Optimal PANEL WIDTHS

12”, 16” (Flush Panel)

*Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

Testing

ASTM E 283
ASTM E 331

ASTM E 1592

UL 263

UL 228

Notice

Drexel Metals test reports are for specific attachments, material gauges, clip spacing and panel widths.

Installation

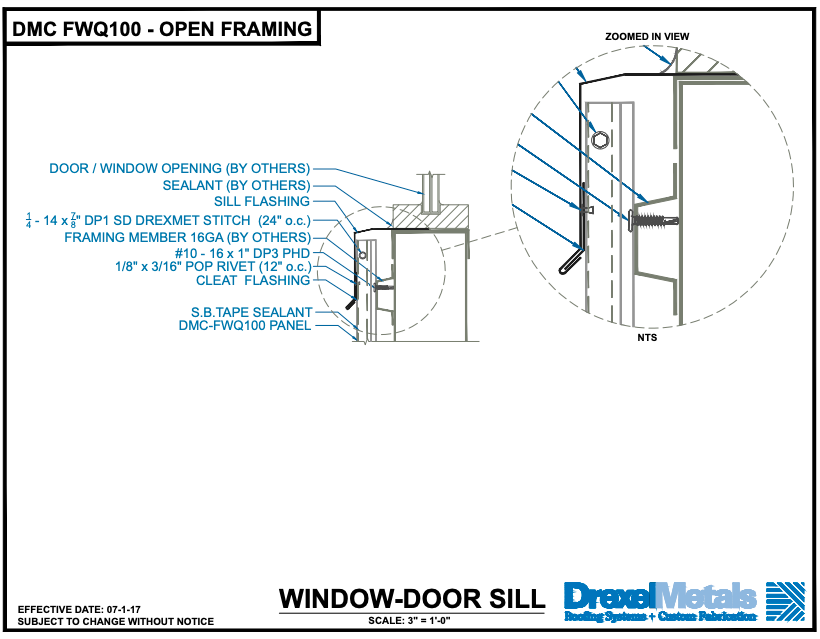

Can be installed over a solid substrate with appropriate underlayment or in limited applications over framing sections. In a windscreen application, panels must be fastened (stitched) through side joints. Consult a local architect/engineer for requirements of local codes and conditions.

35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES

35 year non-pro-rated PVDF Paint Warranty
High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.

25 YEAR WARRANTY - DREXLUME SUBSTRATE

Mill finished Galvalume® with a two-sided, clear acrylic finish.
